Taking a Demotion - Creating Assemblies Using the Demote Tool

“The unexpected always happens”
Proverb

This post comes from a lesson I learned while taking woodshop classes where my assignment was building a coffee table.  We were supposed to create drawings, so taking full advantage of the tools at my disposal, I used Autodesk Inventor.

A rendering of the table in Autodesk Showcase


I found that Inventor did indeed help me lay the table out.  Inventor helped me foresee and avoid problems, particularly by helping me realize that parts I thought would have been identical, were actually mirrors of each other.  That alone saved me from possibly having to remake parts.

But while I was creating the assembly I encountered a mistake I made in the way I approached the assembly structure

The lower part of the table was originally built with all the parts at the same level.  There were no subassemblies.  But when I started to put the sides together, I realized I should have made the table side a subassembly, since a subassembly would require fewer constraints to assemble on the other side of the table.

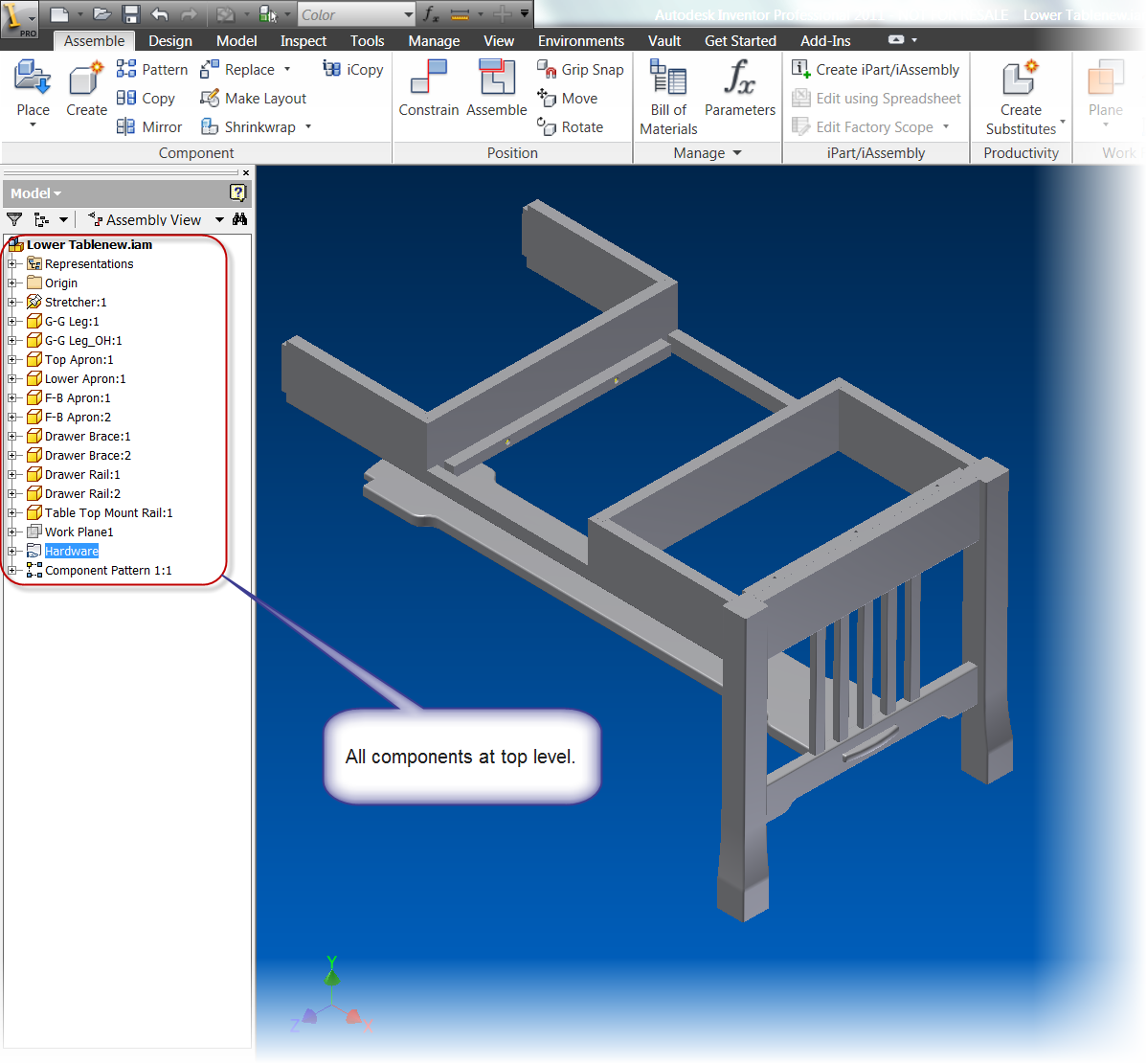

All my parts are at the top level. It seemed like a good idea at the time!

But now that I'm halfway there, how can I fix that, without having to jump through a bunch of hoops?

As it turned out, the demote tool was my best friend. I just selected the components I wanted to create my new subassembly from, right clicked, and chose 'Demote'!  i was quickly off and running!

Select your components, right click, and choose demote

Now I could quickly add the other side of the table with just three constraints!

Viola!  All the other side of the table quickly added.

For a little more detail, here's a video on how it helped me restructure my assembly with minimal delay, and get things rockin' and rollin' again!
